LDSperimetral: STADIUM PERIMETER ADVERTISING SOFTWARE
LDSperimetral: A large perimeter advertising software system
With more than 150 installations worldwide, this perimeter advertising software system for sports stadiums is a system to be reckoned with.
LDSperimetral is a perimeter advertising software solution to organize, manage and execute your clients’ advertising in a perimeter system in sports stadiums.
With a very steep learning curve it allows you to have the peace of mind of success in the management of advertising in sports events, avoiding handling errors and simplifying its management.
In post-production it will help you to be able to show your client what advertising has been shown, when and for how long.
CONTENT EDITING

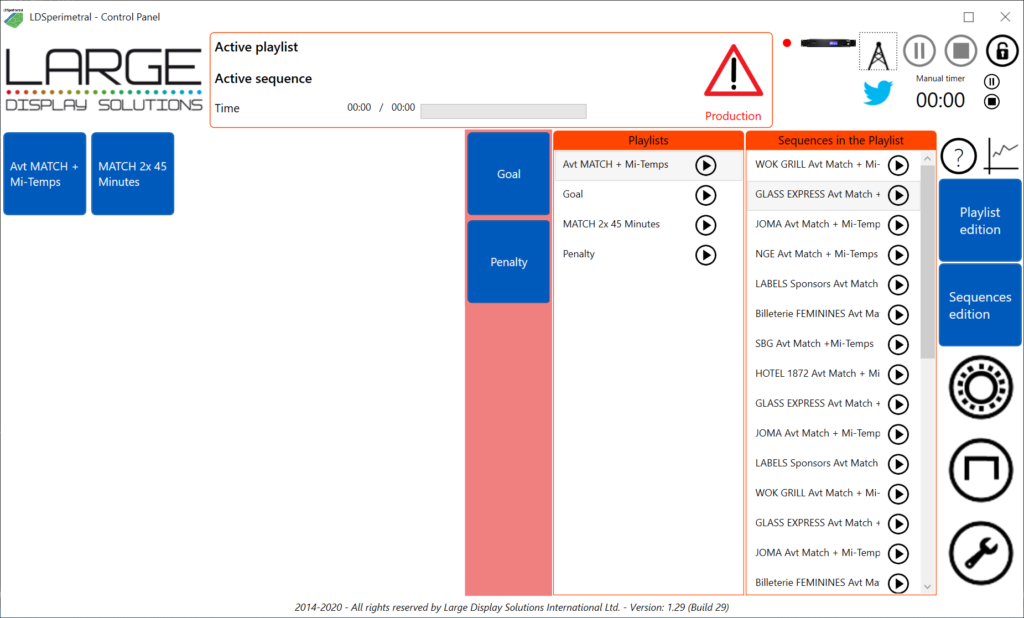

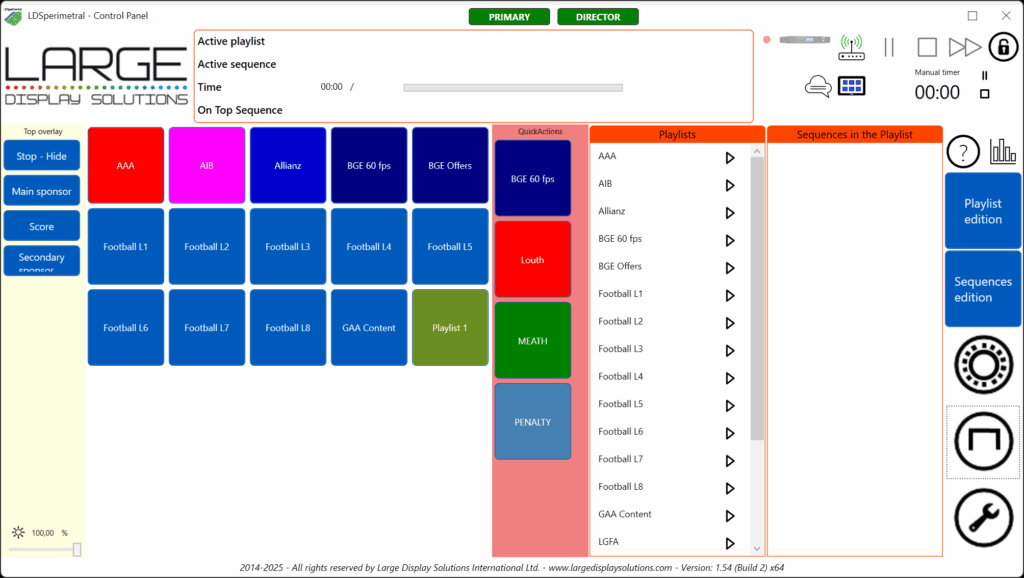

Organize content easily and quickly. With a clear user interface it allows you to organize your videos into sequences and group them into playlists. You’ll have a clear idea of how the videos will be distributed in the perimeter U, and you’ll do it in an agile way.
SCORES AND OTHER TEXT MESSAGES
LDSperimetral offers the possibility to display texts over images or videos. These texts can come from different sources: fixed texts, texts manageable from the control panel and texts read from files. This functionality allows to display the score of the match, show security messages, present serve speed measurements, and a long etcetera in the perimetral system in a simple, friendly and effortless way.
TV EXPOSURE STATISTICS
Through the onTV application, accessible from the LAN where LDSperimetral is located, you will be able to tell the system how much exposure the perimeter system gets in the TV broadcast.
LDSperimetral provides you with TV and stadium exposure statistics segmented by advertisement, thus simplifying the reporting to advertisers.
This functionality will help you reduce the time spent on exposure reporting to advertisers.
INTEGRATION WITH OTHER SYSTEMS

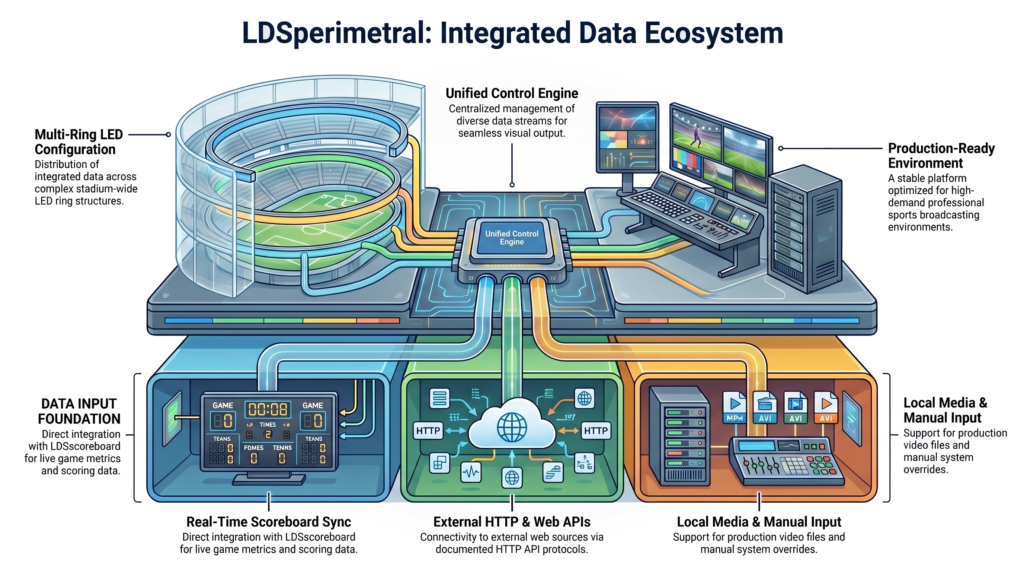

Thanks to the public HTTP API provided by the LDSperimetral perimeter advertising software package, we can control the execution of sequences and playlists remotely, using Elgato’s Stream Deck type devices or any other interface-compliant element.
At the same time, thanks to LDSbridge, which is offered in conjunction with LDSperimetral, we will be able to synchronize other systems with the playback of perimeter content.
LDSbridge will allow you to:
- Identify when a sequence or a specific playlist is started
- Launch a program immediately or in a delayed manner.
- Make a request to another program or system.
- Make a request to an HTTP GET interface of another system.
- Select an ad on LDSscoreboard.
This allows you to synchronize any element of your environment that can be integrated with the perimeter advertising management system.
BRIGHTNESS MANAGEMENT
The system allows you to manage brightness on all existing senders, as well as make color adjustments at the video file level.
If you have a Novastar sender you will have a much more precise level of control thanks to the integration with its communications protocol.
STANDARD OR INDOOR VERSION?
Adjust the cost of your perimeter system to your needs
So that you can adjust your costs to the size of the perimeter system you need, we have introduced the INDOOR version.
The INDOOR version offers the same features as the standard version, but has a limitation as to the maximum size that your perimeter system can have.
| Standard | INDOOR | |
|---|---|---|
| Maximum length in pixels | No limitation | 15.000 |
| Maximum length in meters (6.25 pixel pitch) | No limitation | 93,75 |
| Application features | All | All |
MAXIMUM SECURITY
In a live event, safety and stability of operation is a top priority.
Therefore, LDSperimetral can be configured in such a way as to have a backup system completely synchronized by network in terms of content and execution, so that if a failure occurs in one of the computers, the other will continue to offer service.
HARDWARE LED
LDSperimetral is a versatile system with great capacity to adapt to the hardware you have.
Compatible with all LED perimeter systems on the market
Compatible with all senders
Maximum performance with Novastar

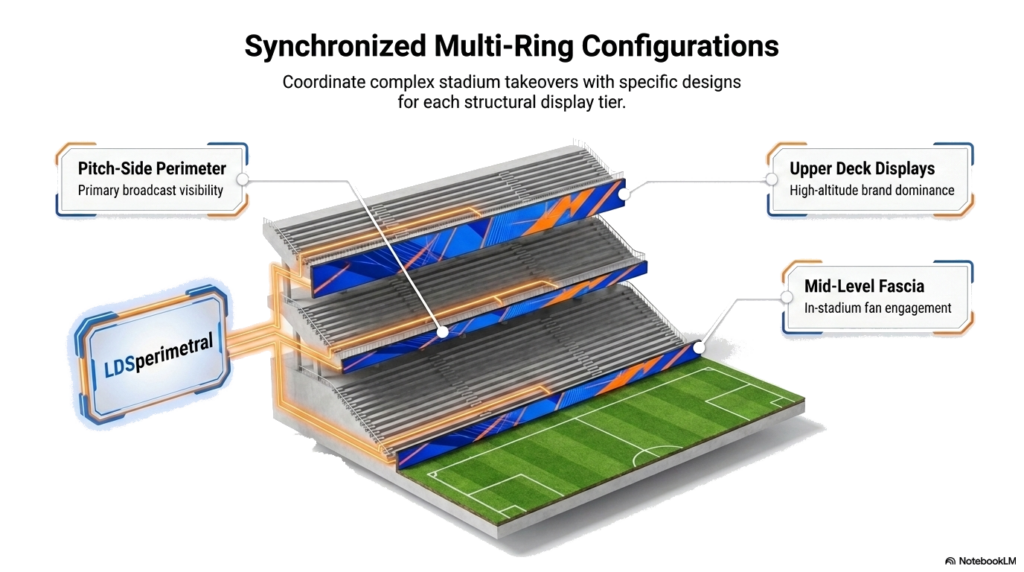

Support for long perimeters
PC PLATFORM
To use this perimeter advertising management software system you will need a computer with approximately these features. Depending on your needs, we will recommend adjustments on this basis.
Please refer to the product documentation for details or contact us.
NEXT STEP: TRY IT WITHOUT COMMITMENT
Because the purchase decision is complex, we offer you a fully functional trial version so you can see if the system fits your needs.
The trial version will allow you to use all the features, but in the perimeter system the word DEMO will appear in all the cabinets. Go to the downloads page and download the current version. If you do not enter a license number, the system will operate in DEMO mode.
Make the most of your time with a free online learning plan so you can work autonomously with the system.
LICENSING PLANS
Licenses are always linked to a computer, i.e. each computer offers a different registration number and the license is for exclusive use for this computer. It is not interchangeable. To cover all your needs we offer two types of licenses: annual renewal licenses and perpetual licenses (for the computer on which they are installed).
| Annual renewal | Perpetual license | |
|---|---|---|
| All functionalities are available | Yes | Yes |
| Is there any time limit for the use of the license | Yes, one year after activation | No, it is forever. |
| Can I replace the computer? | Yes | No |
| In case of theft or replacement, I must buy another license. | No | Yes |
LDSperimetral Standard
- Annual license
- License for one computer
- Online support included
- Version upgrades: yes
- License substitution in case of computer change: Yes.
LDSperimetral Stadium Pack
- Annual license
- License for primary and backup
- Online support included
- Version upgrades: yes
- License substitution in case of computer change: Yes.
LDSperimetral Standard
- Perpetual license
- License for one computer
- Online support included: 1st year
- Version upgrades: 1st year
- License substitution in case of computer change: NO
LDSperimetral Stadium Pack
- Perpetual license
- License for primary and backup
- Online support included: 1st year
- Version upgrades: 1st year
- License substitution in case of computer change: NO
FREQUENT QUESTIONS
We recommend a intel based computer, a core i5 or i7, with at least, 8Gb of RAM, the recommended disc is a SSD becuse the reproduction of several files is a task that request a high throughput of the disk system. As a graphical card we recommend NVIDIA, because at the moment of writing these lines is the brand that offers the most stable drivers. It is not only a matter of power, it is also a requirement to have very stable software that controls that hardware, and our experience says that NVIDIA is the best choice.
The operating system proposed is Windows 10, in any of its versions.
The operating system has to be updated, like the drivers, that have to be in the last version.
Yes, sure. There is no problem to translate the system to a new language. It may happen that we do not know that language enough to make a translation with the quality required. In this case we may ask you for help with the translation.
Nunc euismod lobortis massa, id sollicitudin augue auctor vel. Integer ornare sollicitudin turpis vitae vestibulum. Curabitur faucibus ullamcorper lorem sed egestas. Pellentesque laoreet auctor eros, et consectetur eros auctor eget. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Vestibulum tortor nisi, egestas eget molestie tincidunt, tempus sed justo. Vestibulum ultricies auctor varius. Fusce consequat tincidunt dui, ac adipiscing turpis adipiscing pulvinar. Aliquam erat volutpat. Vivamus eleifend rhoncus nulla in laoreet.
Aliquam commodo gravida magna eget tincidunt. Fusce nisi augue, malesuada in commodo quis, euismod quis orci. Integer vitae nisl non augue ullamcorper blandit. Donec vitae nibh ipsum, vitae semper orci. Nunc sed elit in nulla auctor imperdiet. Ut a nisl sit amet odio accumsan laoreet. Sed pharetra lectus in arcu pellentesque et iaculis justo pellentesque. Etiam laoreet sodales sapien, id congue magna malesuada ut. Class aptent aptent taciti sociosqu ad litora torquent per conubia nostra, per inceptos himenaeos.
In the LDSperimetral system, the licensing is for each individual computer, is to say, you can not transfer your license from one computer to another.
When the systems starts, if it does not detect a valid license, will show you the “Installation Identifier”, that is a number that is unique for each computer, and a space to introduce your license, or “Registration Identifier”. If you do it, those identifiers will be stored and you will not be asked again until its expiration date – for the case of the yearly renewable ones – or never again for the perpetual licenses.
In case you do not introduce it, the system will be in demo mode. This mode is identical to the production mode, but in the display you will see the word “DEMO” in each module of the display.
You can make all tests and training you want in demo mode, the software is completely functional.
The perpetual license has just one payment and is for one computer, a concrete computer. This license will never expire, and you will be able to use it in that computer forever. During the first year you will have online support a response time of 24 hours and updates.
The yearly renewable license has other advantges: you can substitute your computer, always will have the latest version and will have online support with response time of 24 hours.
The characteristics of the software are the same, independently of the licensing version you may have.
Licenses are for individual computers. One license is for one computer, for a concrete one, not for only one. When you buy a perpetual license, the license code will only work for that computer, and if you have to buy a new computer your license will not be valid for that computer.
If you buy a yearly service, and you change your computer for any reason, you will be able to receive a new license code for your new computer but with the same expiring date.
Yes, this is known as “quick actions”. When a “quick action” finishes, it goes back to the playlist that was playing before its activation.
